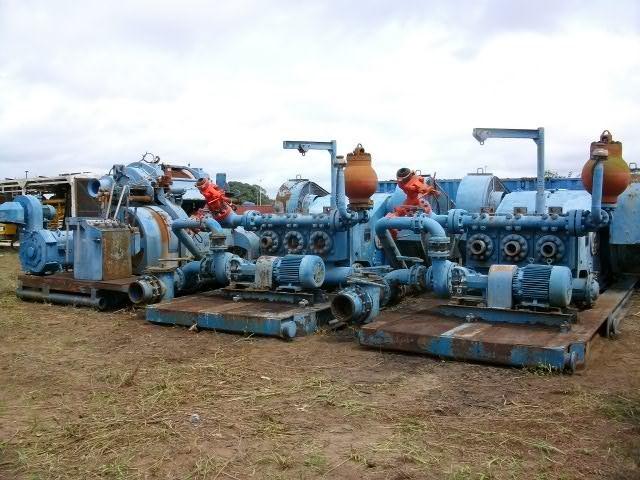

2 x 1600 HP Mud Pump Package

This Mud Pump package can be sold as a stand alone package or with the Rig package. The Rig package is a Mid-Continent Unit 712 Diesel Electric, complete with 1200 hp Drawworks and 4 x 3512 Caterpillar Generators and SCR building and all other rig equipment. Details of Rig package on request.

The Mud Pump package was purchased new and completed a five well program with drilling depths from 2000 – 2500 metres. The rig has not done any other drilling after completing this drilling program and has been stacked awaiting further opportunities to develop in Angola.

The rig is currently stacked in (Angola) and is approximately twenty kilometres from port. The camp units are stacked with the rig with some in a secure stack yard.

Mud Pump No 1

Make LSF
Model LSF-1600 Triplex
Size 1600 hp
Serial No LSF1600-06-001
Rating 7” x 10”
Working Pressure 5000 psi
Fluid End Forged Steel
Liners & Pistons Quick change system
DC Motors 2 (complete with blower motors)
Make GE (style)
Model 752
HP 1000 each
Power Drive AR DC Electric Motors through belts
Supercharging Pump 1
Make Double Life
Motor Size 100 hp
Centrifugal Pump Size 6” x 8” x 11”
Discharge Line Valve 4” x 5000 psi WP
Pulsation Dampener LFS
Model KB-75
Working Pressure 5000 psi
Shear Relief Valve LSF
Model Resettable
Size 3”
Working Pressure 5000 psi
Bleed off valve 2” x 5000 psi
Cables One lot (pump to SCR building)







Mud Pump No 2

Make LSF
Model LSF-1600 Triplex
Size 1600 hp
Serial No LSF1600-06-002
Rating 7” x 10”
Working Pressure 5000 psi
Fluid End Forged Steel
Liners & Pistons Quick change system
DC Motors 2 (complete with blower motors)
Make GE (style)
Model 752
HP 1000 each
Power Drive AR DC Electric Motors through belts
Supercharging Pump 1
Make Double Life
Motor Size 100 hp
Centrifugal Pump Size 6” x 8” x 11”
Discharge Line Valve 4” x 5000 psi WP
Pulsation Dampener LFS
Model KB-75
Working Pressure 5000 psi
Shear Relief Valve LSF
Model Resettable
Size 3”
Working Pressure 5000 psi
Bleed off valve 2” x 5000 psi
Cables One lot (pump to SCR building)

The Mud pumps come complete with a compliment of spares on request for the fluid end to include but not limited to Liners, Piston Heads, Seals, Rods, Seats, Valves ect.
The pumps also come with liner lifting facilities, seat and liner pullers.
Spare supercharging pump motors and DC motors are available on request.
